Vulkan examples and demos

Future place for examples and demos for Khronos' new 3D and compute API Vulkan(tm)

Vulkan from my point-of-view

I recently did a write-up with my personal view on Vulkan for a hobby developer. It goes into detail on some of the most important things to consider when deciding on how to switch over from Vulkan and also clears up some things that several press articles got wrong.

Vulkan example base class

All examples are derived from a base class that encapsulates common used Vulkan functionality and all the setup stuff that's not necessary to repeat for each example. It also contains functions to load shaders and an easy wrapper to enable debugging via the validation layers.

If you want to create an example based on this base class, simply derive :

#include "vulkanexamplebase.h"
...
class MyVulkanExample : public VulkanExampleBase
{
  ...
  VulkanExample()
  {
    width = 1024;
    height = 1024;
    zoom = -15;
    rotation = glm::vec3(-45.0, 22.5, 0.0);
    title = "My new Vulkan Example";
  }
}

todo : Document helper classes like vulkandebug

Examples

todo : In progress (order by complexity?)

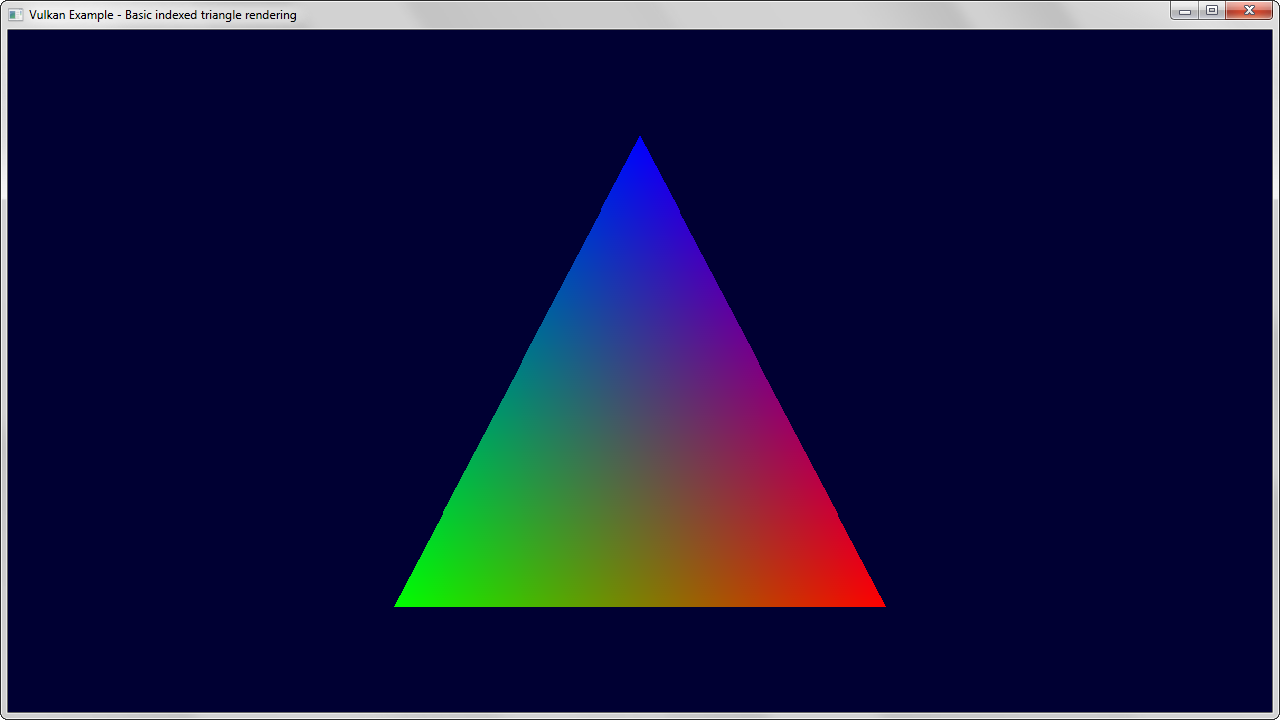

Triangle

Most basic example. Renders a colored triangle using an indexed vertex buffer, only one pipeline with very simple shaders. Uses a single uniform buffer for the matrices.

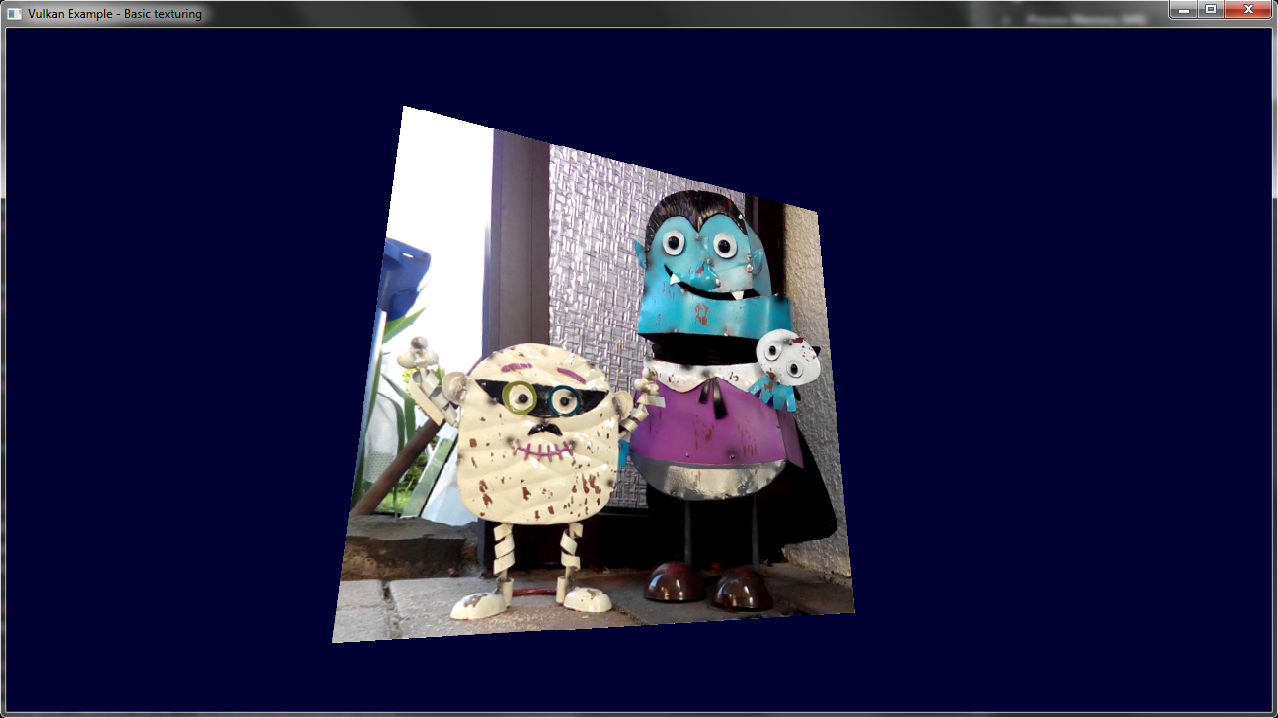

Texture

Loads a single texture and displays it on a simple quad.

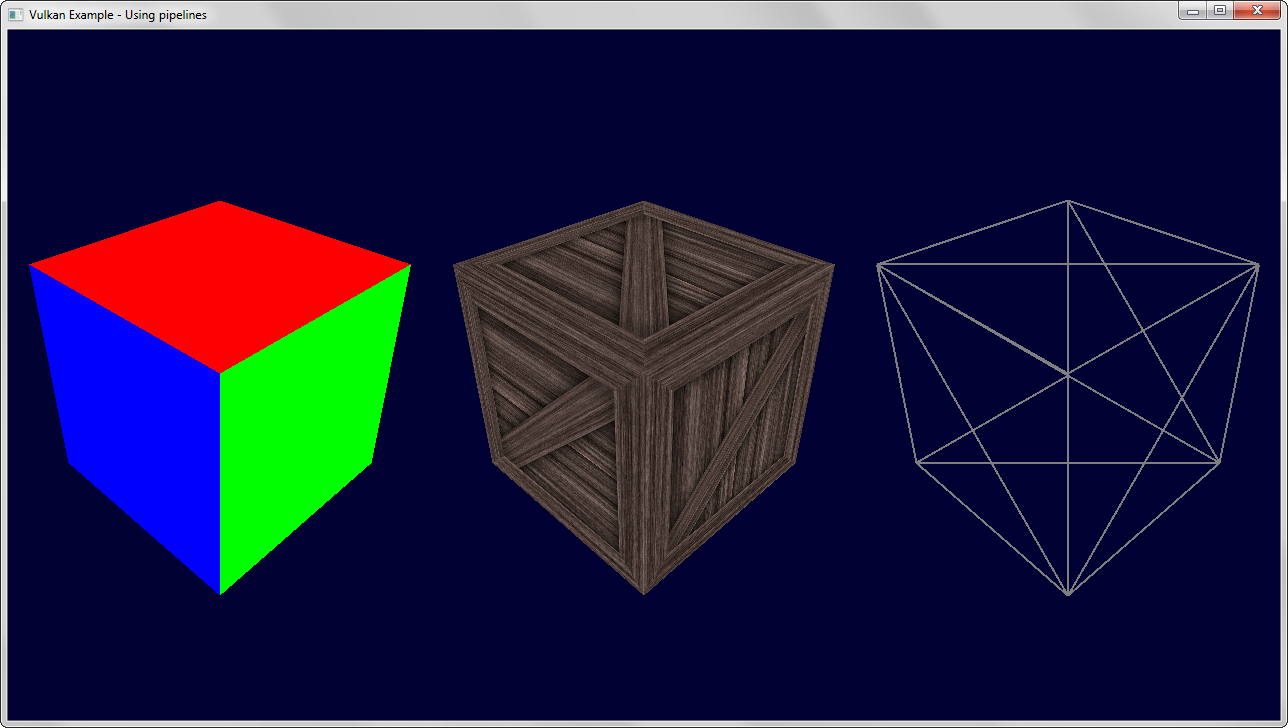

Pipelines

Pipelines replace the huge (and cumbersome) state machine of OpenGL. This example creates different pipelines with different states and shader setups.

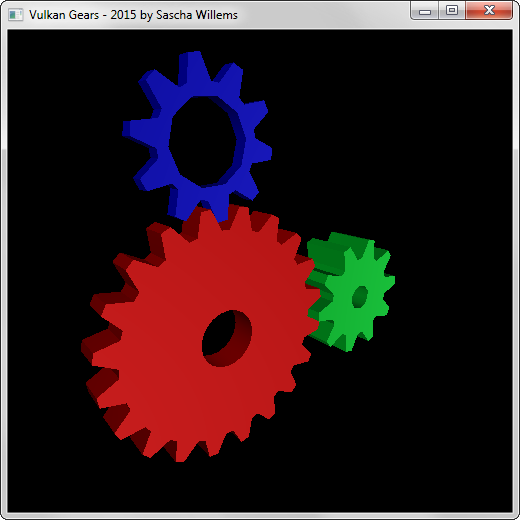

Gears

Vulkan interpretation of glxgears. Procedurally generates separate meshes for each gear, with every mesh having it's own uniform buffer object for animation. Also demonstrates how to use different descriptor sets.

Mesh rendering

todo : Current screenshot

Uses assimp to load a mesh from a common 3D format and shows how to render it in Vulkan.

Mesh instancing

todo : Current screenshot

Based on the mesh demo, but does instanced rendering of the same mesh using separate uniform buffers for each instance.

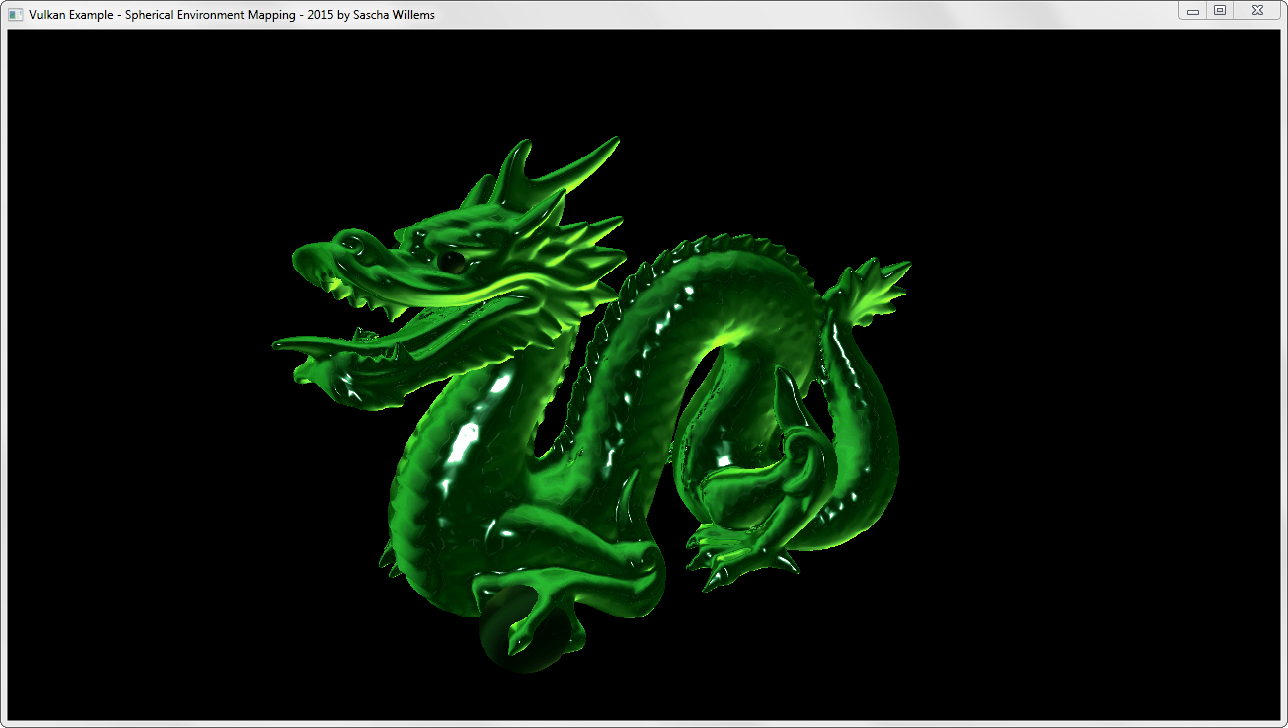

Spherical environment mapping

Uses a matcap texture (spherical reflection map) to fake complex lighting. It's based on this article.

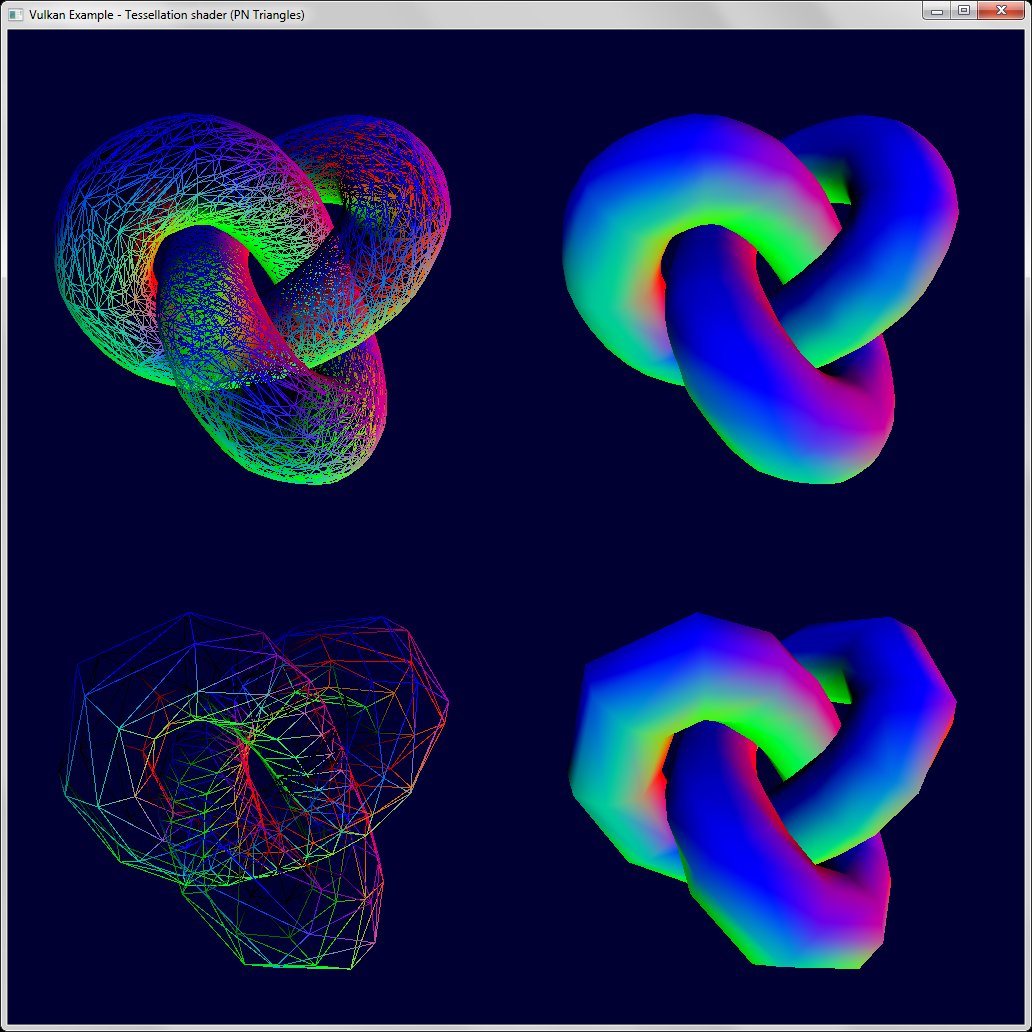

(Tessellation shader) PN-Triangles

Generating curved PN-Triangles on the GPU using tessellation shaders to add details to low-polygon meshes, based on this paper.

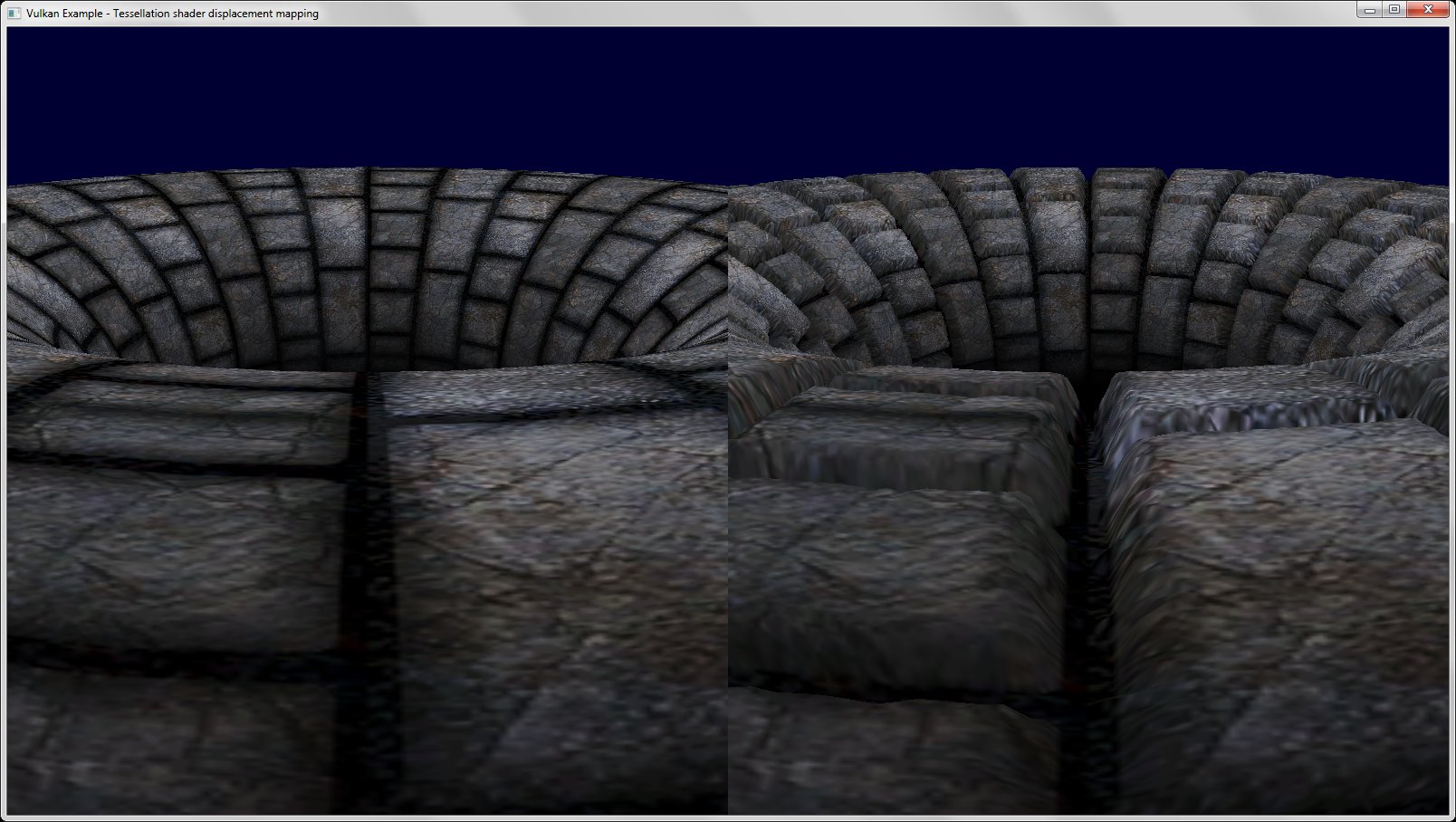

(Tessellation shader) Displacement mapping

Uses tessellation shaders to generate and displace geometry based on a displacement map (heightmap).

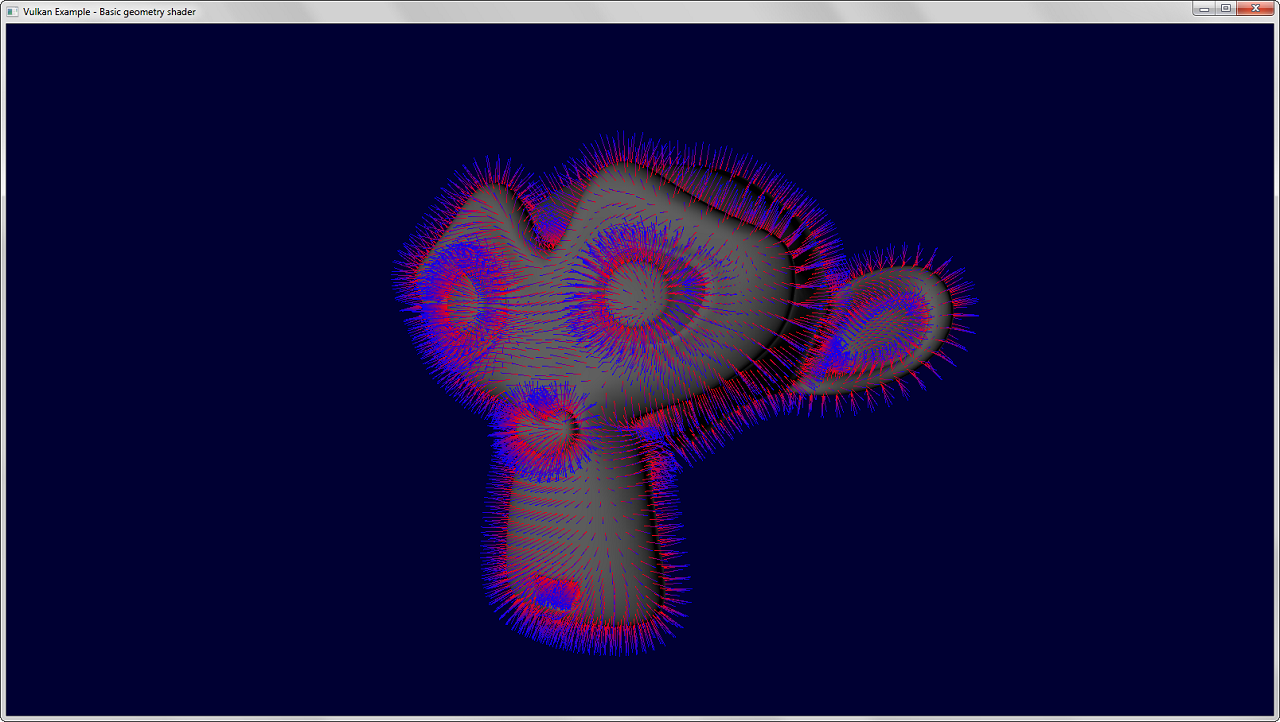

(Geometry shader) Normal debugging

Renders the vertex normals of a complex mesh with the use of a geometry shader. The mesh is rendered solid first and the a geometry shader that generates lines from the face normals is used in the second pass.

Dependencies

todo

External resources

TODO : In progress

• Official list of Vulkan resources
